Precision Machining

6a209c710cea5_image001

Precision Machining

Technical Field Services offers a complete service line of precision machining. Our machines are designed for reliability in demanding field conditions, these machines allow for efficient, clean cuts without heat-affected zones, preserving material integrity. Their user-friendly design ensures straightforward handling, quick setup, and smooth operation, making them well-suited for fast-paced outage and shutdown schedules where accuracy and time control are critical.

Have a Question? Reach Out to:
Danny Sieber, General Manager
(256) 441-0139
danny@tfs-co.com

Contact Us

Technical Field Services Capabilities:

  • Split Frame Machines - Operate from 2.000” to 72.000” pipe

  •  Precision beveling & compound weld preps from 2.000" to 72.000”

  • Flange Facing up to 96”

  • Boring on nozzles, gamma plugs, thermal welds to 24.000"

  • Key mills, and mill slips to 72.000”

  • Gamma ports, and gamma plugs to customer specs

  • Bolt extraction

  • Pipe and large vessel segmentation

  •  “O” ring groove machining

  • Precision hole induction

  • Precision milling and drilling operations

  • Journal Turning

  • Keyway Cutting

  • Line Boring

  • Man way / Hand hole grinding

  • Shop Machining

  • Component Fabrication

Pipe Cutting

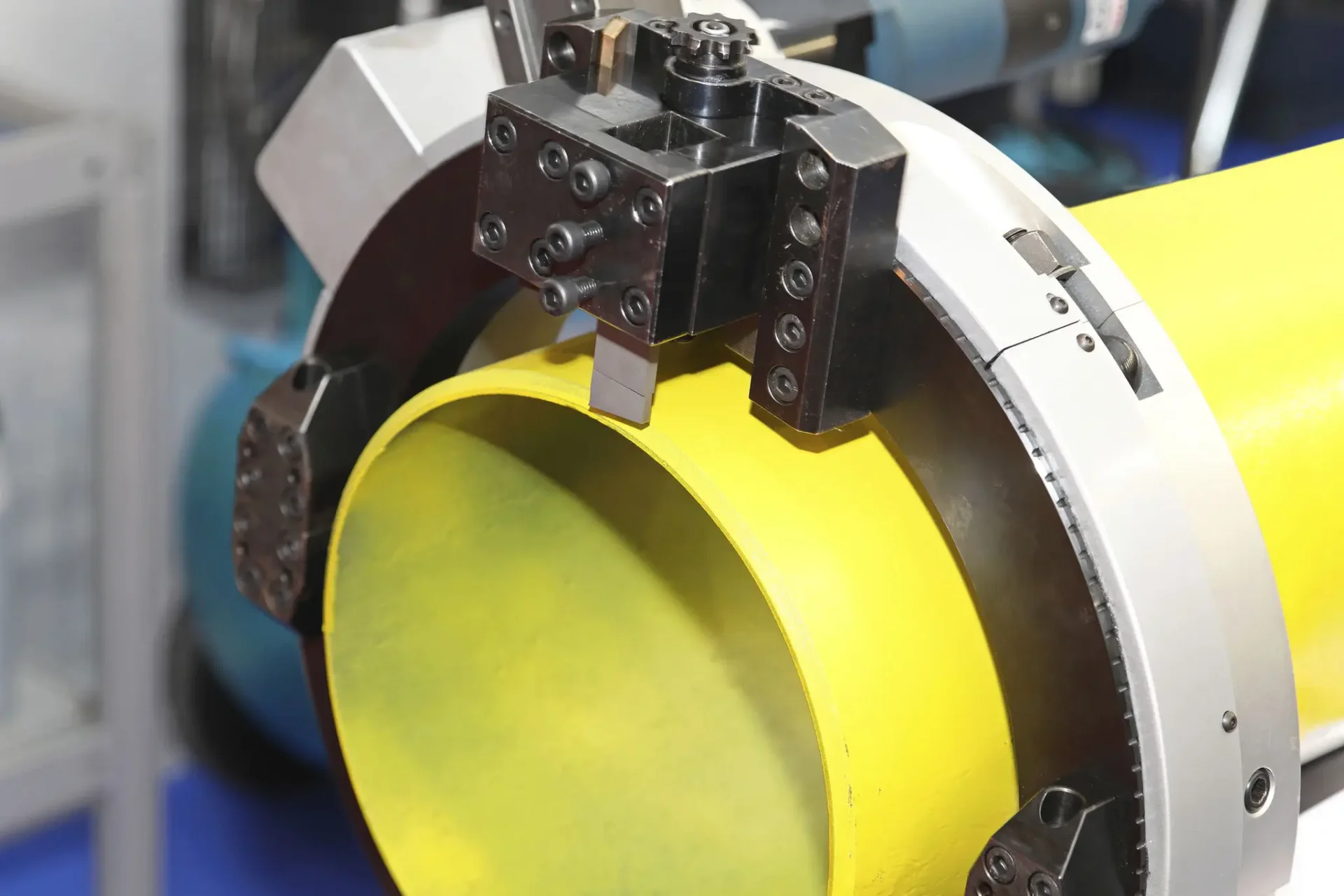

Technical Field Services split frames machines are ideal for cold cutting pipe from 2.000" to 72.000" O.D. and up to 6.000" m.w.t. Technical Field Services split frame machines are easy to handle, set-up, operate and maintain during the tightest of schedules.

6a1c464289220_Machine2
6a1c464265c67_Cold Cut 1

Pipe Beveling

Technical Field Services bevel machines are designed to deliver fast and precise beveling, compound bevels, standard weld preps, "J" preps and can counterbore pipe, fittings and valves from 2.000" to 72.000" O.D. up to 4.000" m.w.t. Technical Field Services machines are self centering which will decrease set-up time.

Flange Facing

Technical Field Services flange facing machines are designed to mount to the pipe I.D. They are self centering and the mounting legs require less than 1.000" area for mounting. Technical Field Services flange facing machines produce a lathe quality surface on flat, raised or recessed face flanges in minutes. Technical Field Services machines are self centering which will decrease set-up time.

6a1c46429d97c_Machine3 - Flange Facing
